Dunn's Corners Fire Department

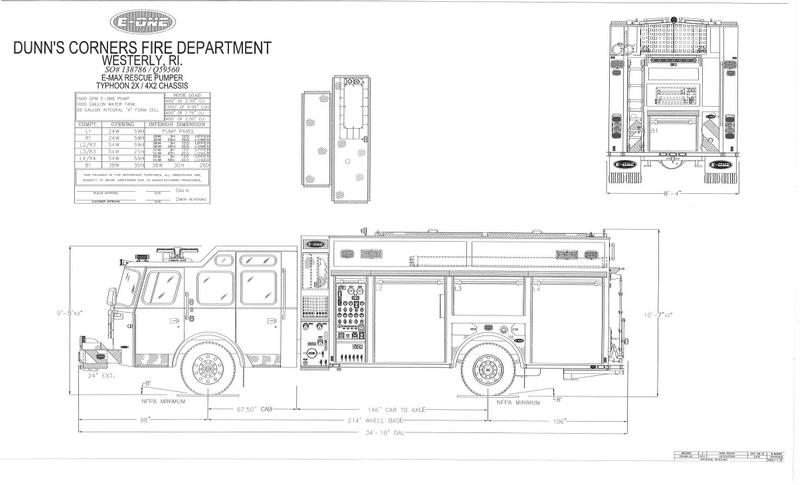

Final Drawings Rescue Side

Final Drawings Fire Side

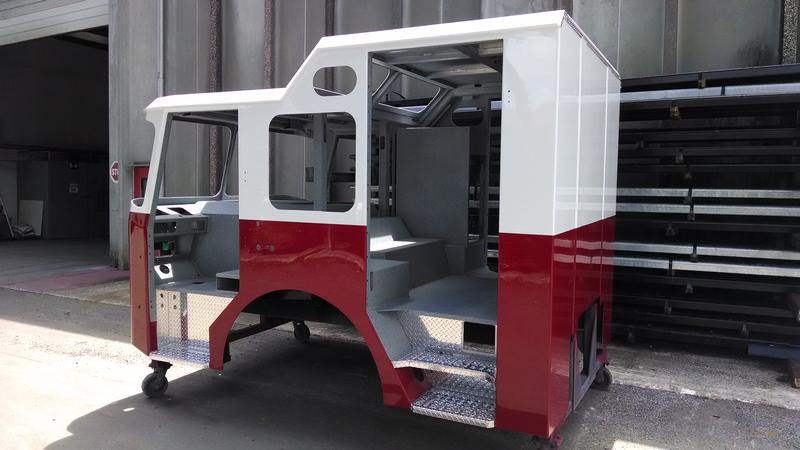

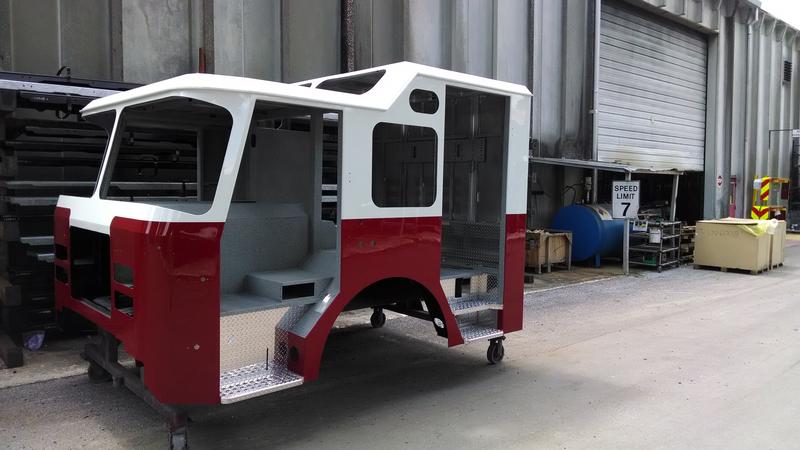

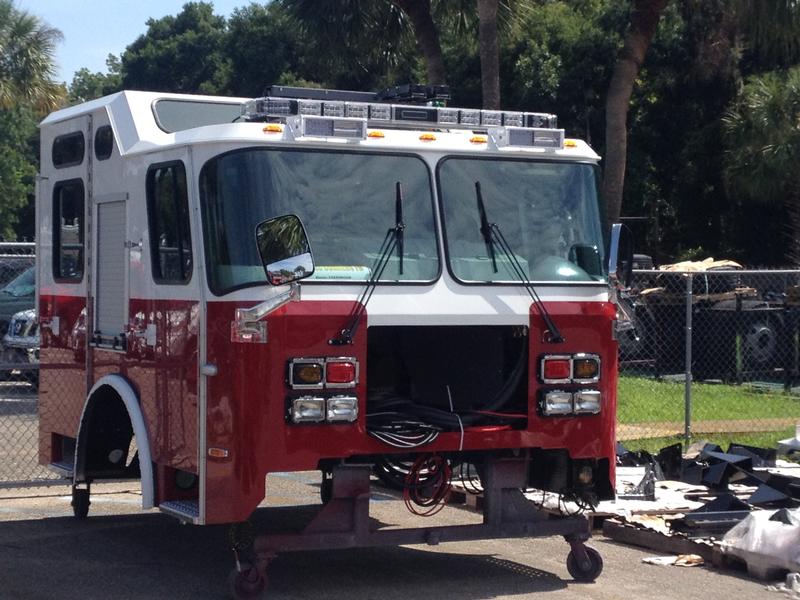

Cab Finished Paint, onto cab assembly

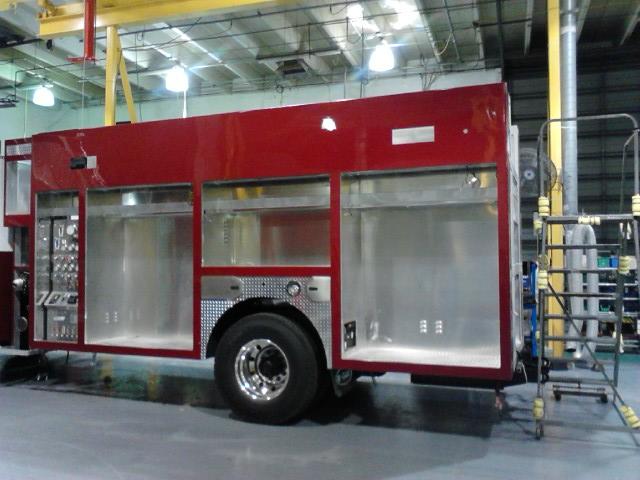

Fire Attack Side of the body.

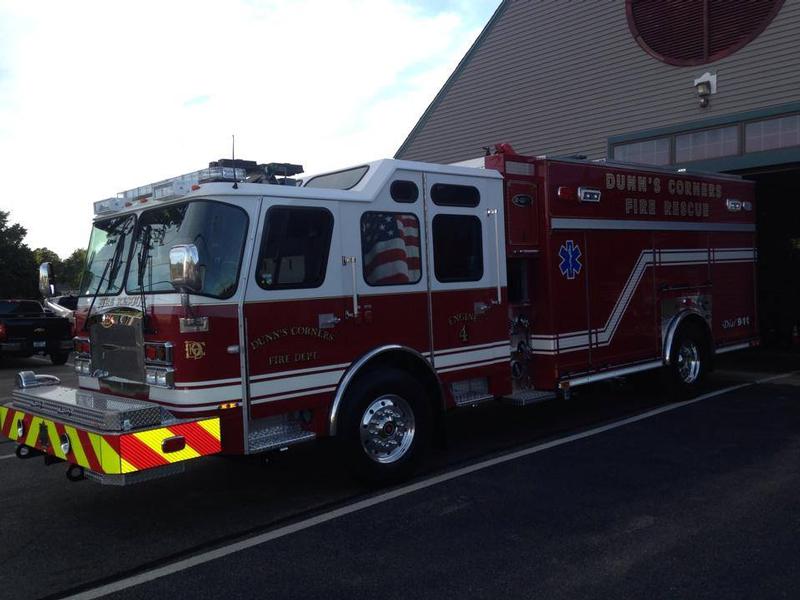

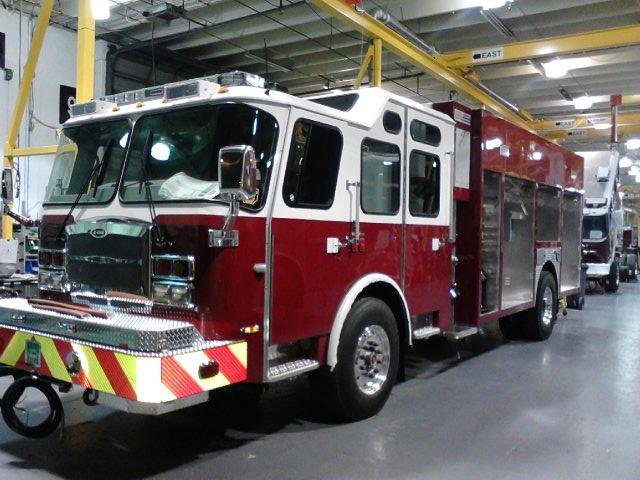

Rescue Side of the body.

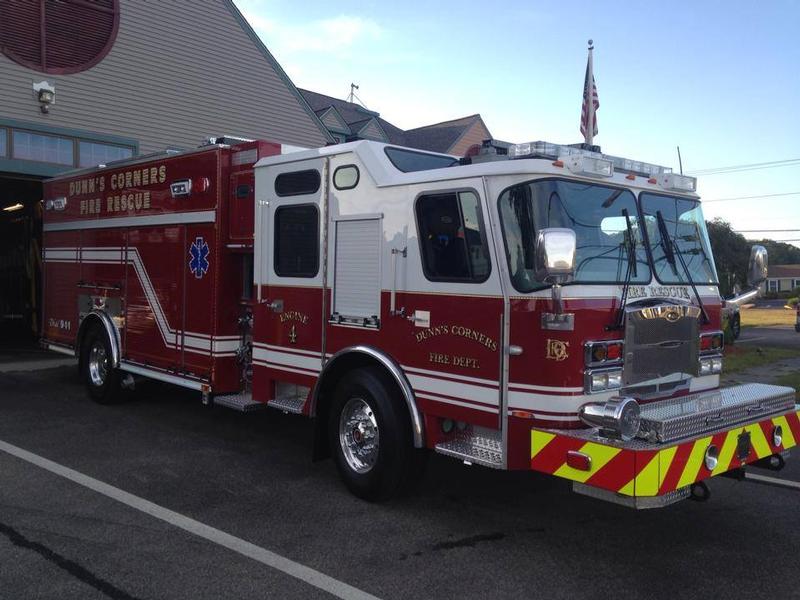

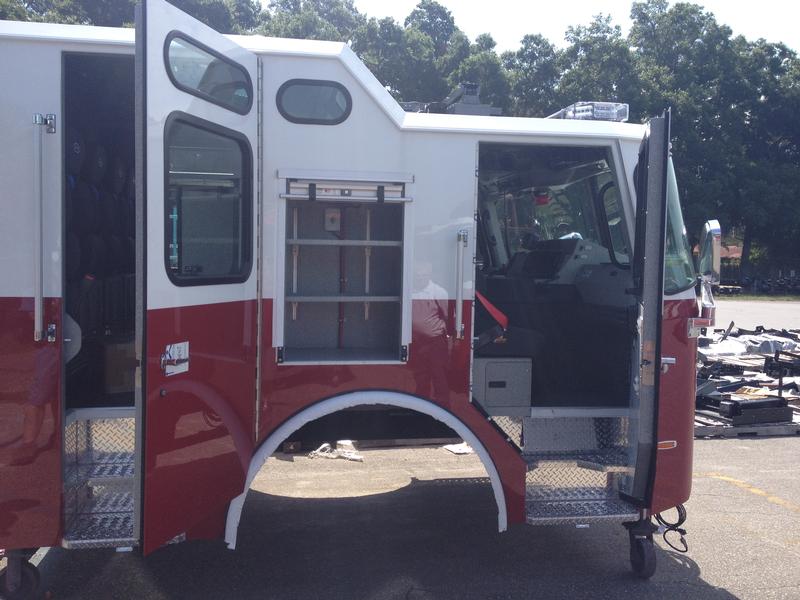

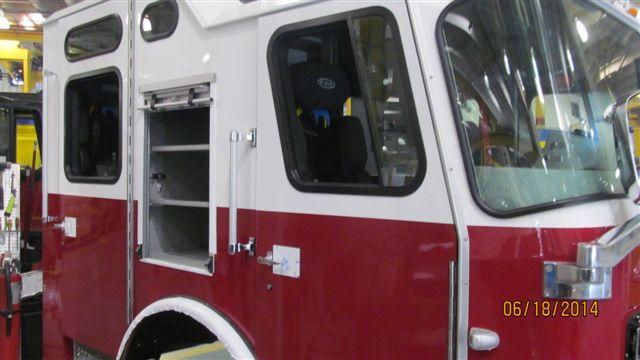

Driver side; note the turn signal video camera below the mirror.

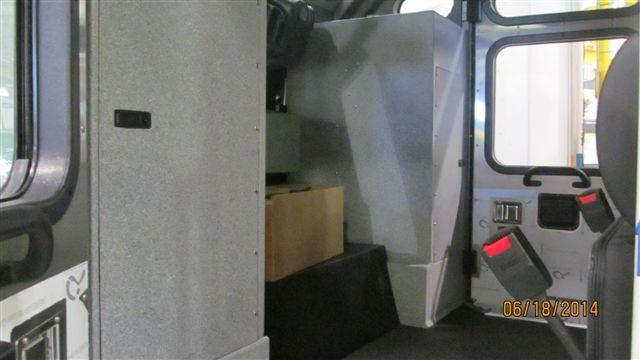

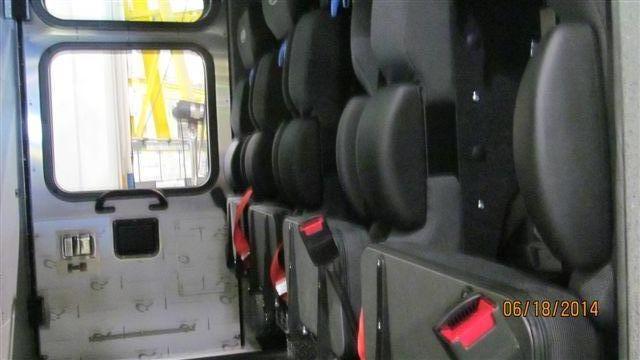

4 crew seats in rear, forward facing only.

Two medical compartments.

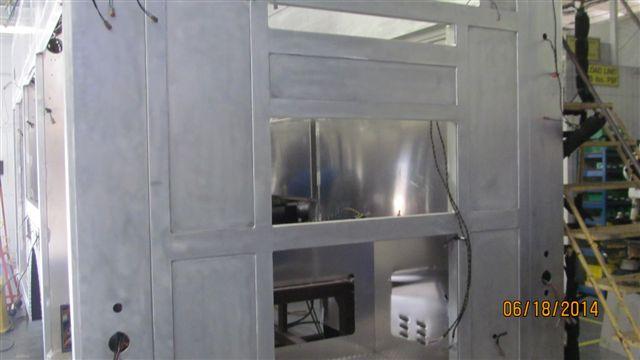

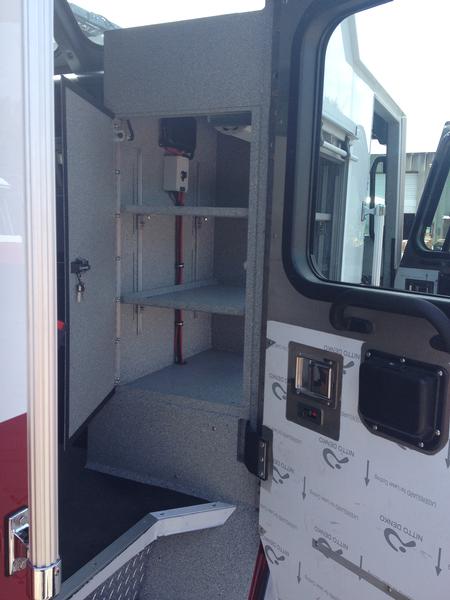

Inside and Outside medical compartment.

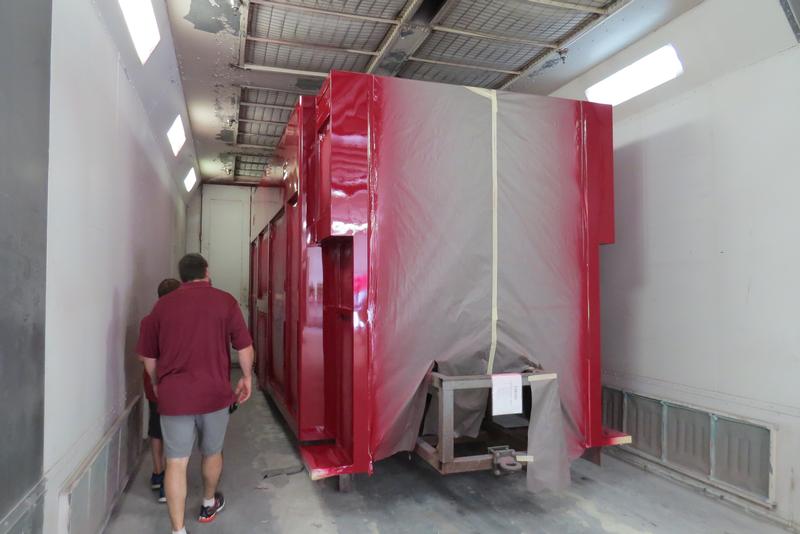

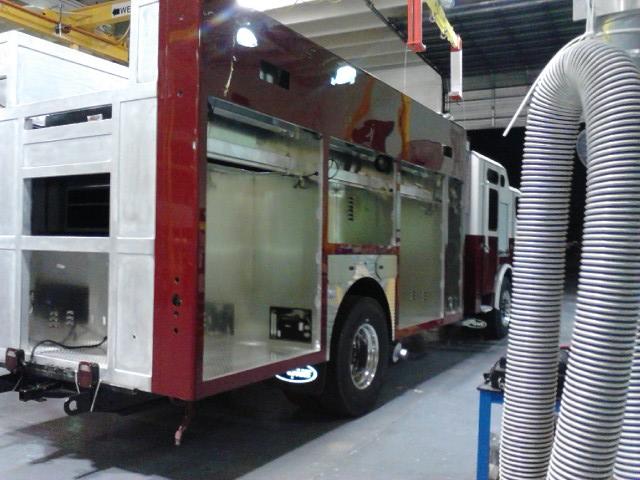

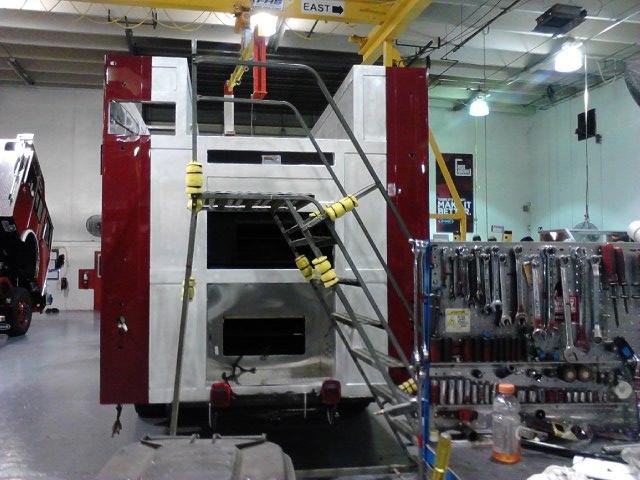

Body in the paint booth

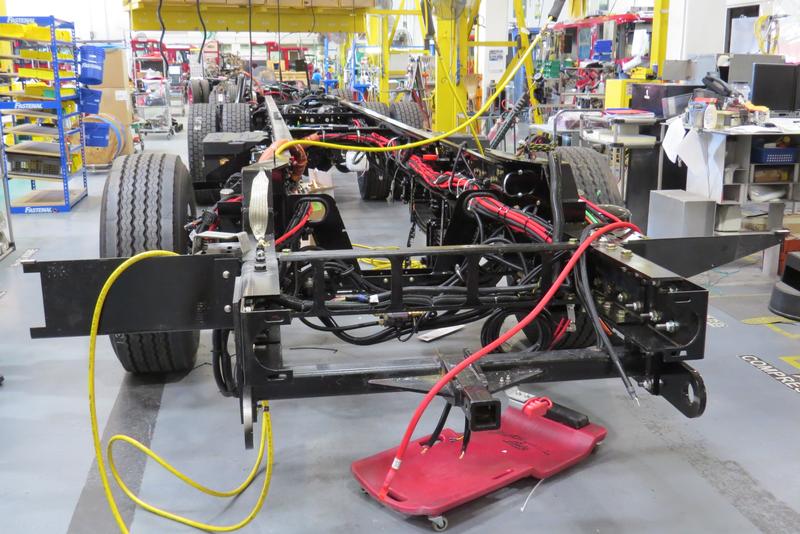

Chassis getting ready to be mated with the power components

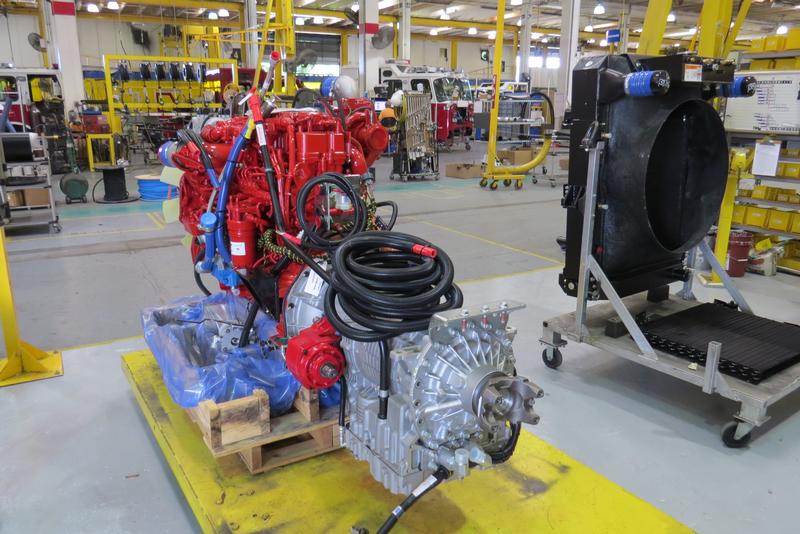

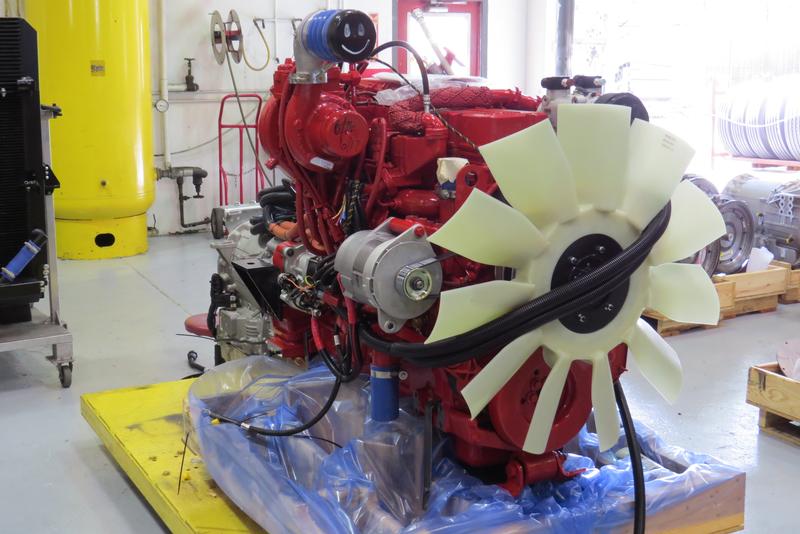

Engine and radiator ready to be mounted

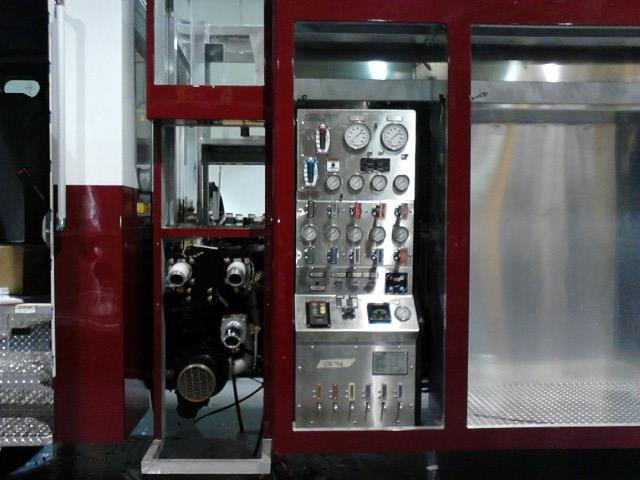

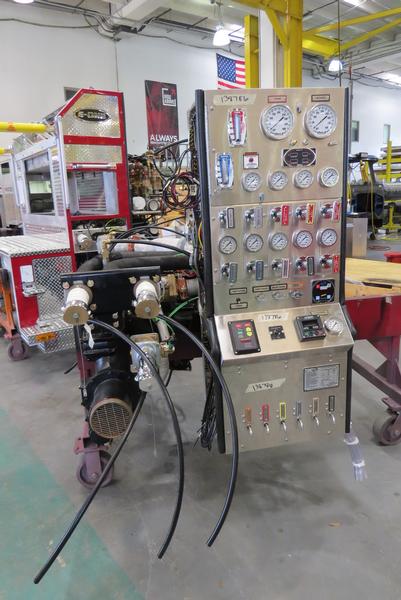

First look at the pump panel

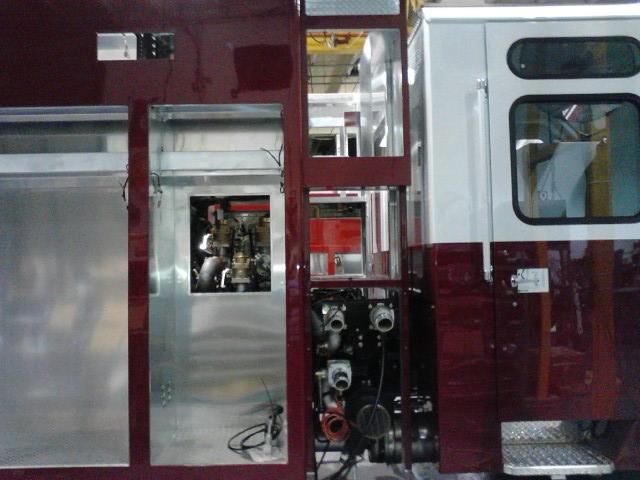

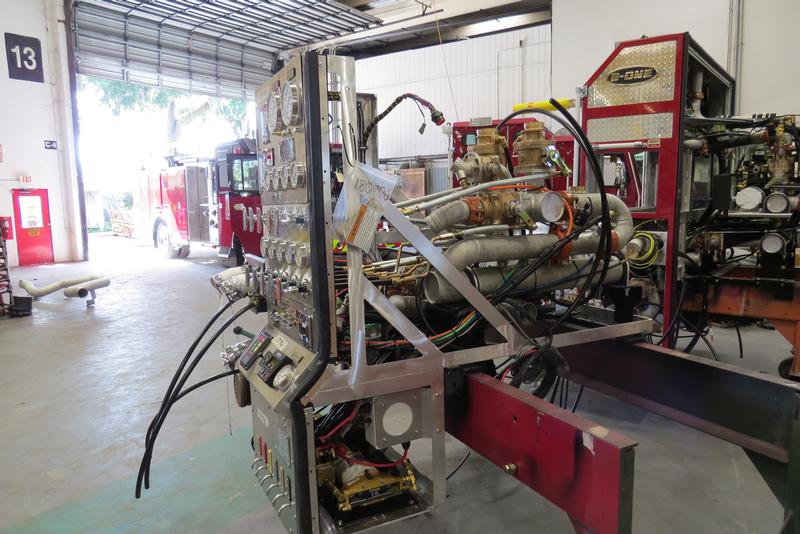

Side view of pump panel

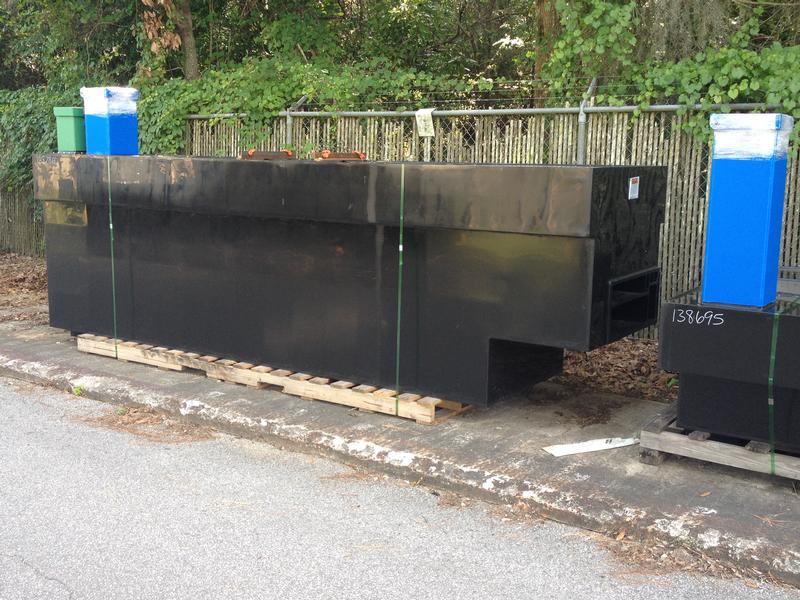

1,000 Gallon water tank with 30 Gallon Class A foam cell. Also note the through the tank ladder well to the rear.

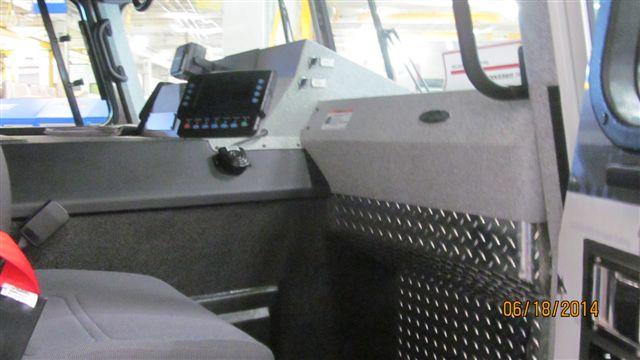

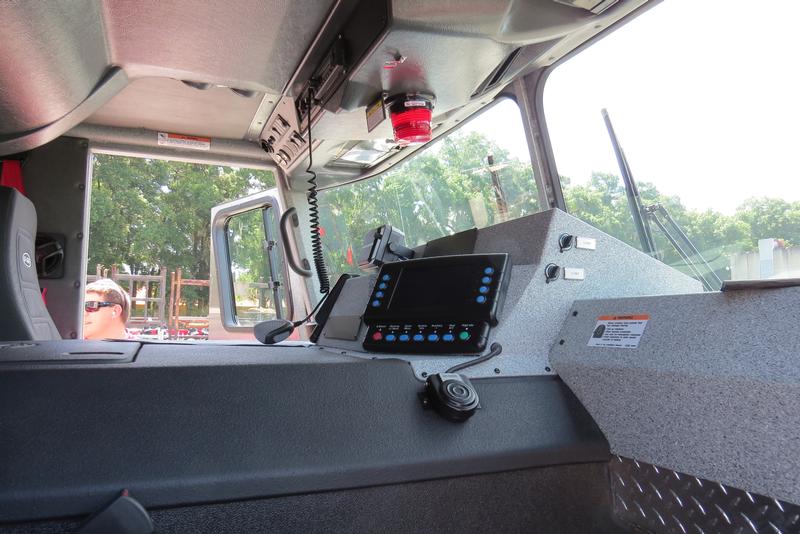

Finished Cab interior

Finished Cab Interior Officer Seat

Rear Medical compartment. Both compartments have various power points.

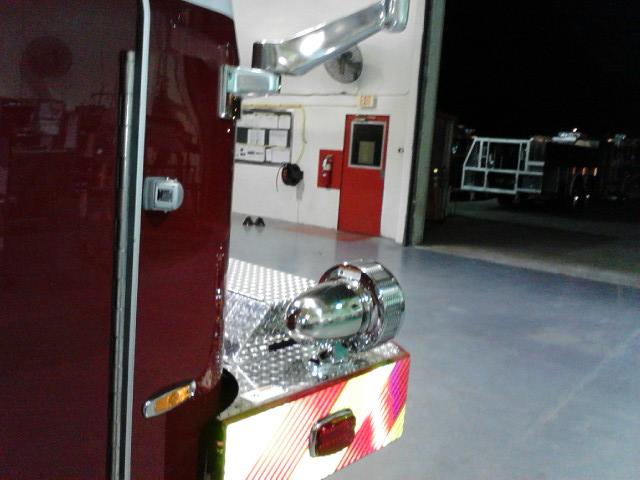

Front bumper extension to house the Hurst Tool and trash line

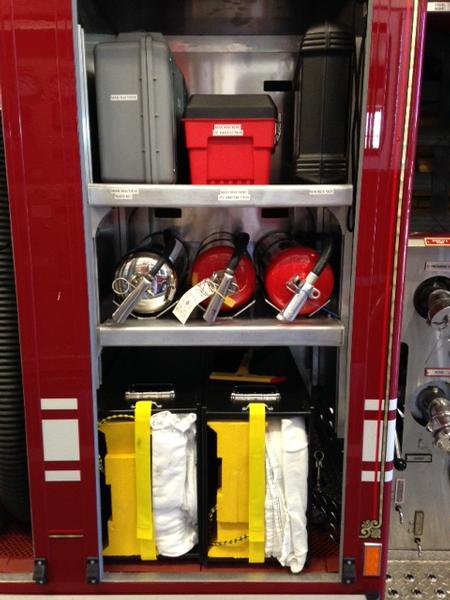

R1 compartment. This compartment contains the vehicle cribbing boxes, extinguishers and our man in machine rescue kits.

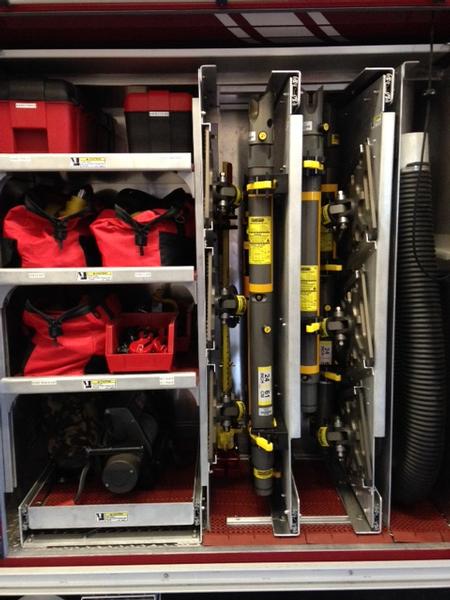

R2 compartment. This compartment contains our rescue strut systems. It also holds the portable winch (there are attachment points in the front and rear). The rescue chains, mini portable winch kit hand tools and the lock out tag out kit are also within this compartment.

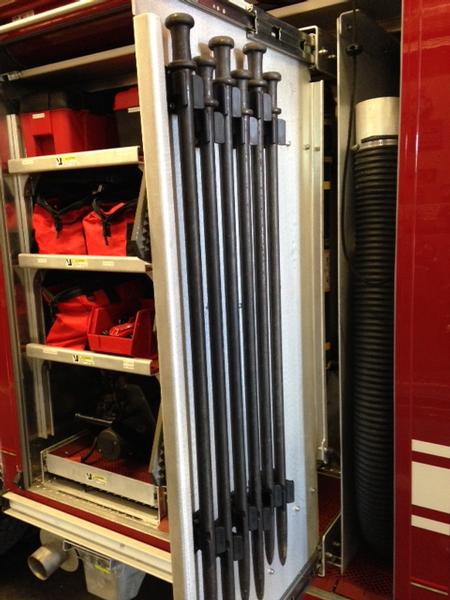

48" Stakes for securing the strut plates well as a portable anchor system.

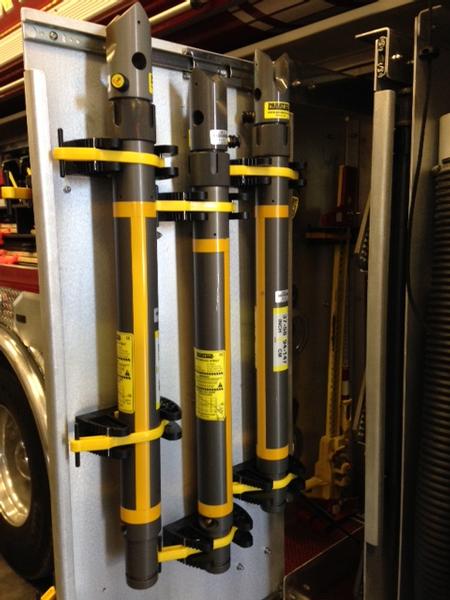

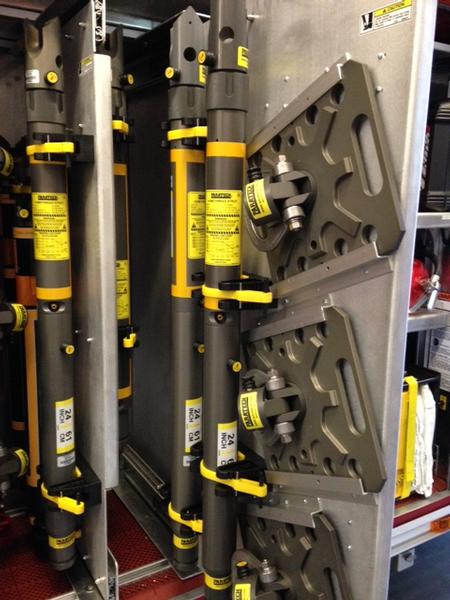

Two struts and strut plates.

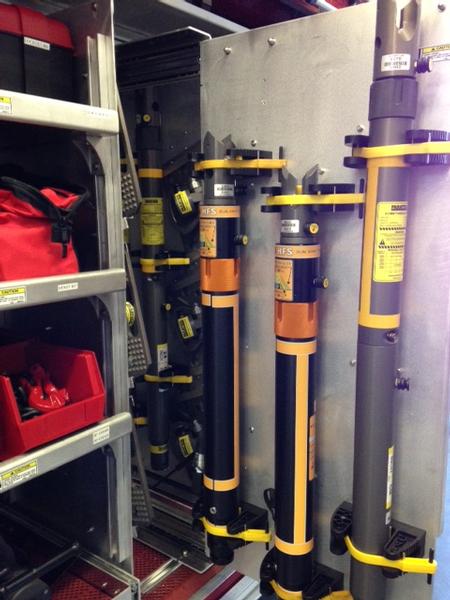

One vehicle strut and two 10 Ton lifting struts.

More struts.

Portable winch for the truck. Also the red bags contain the strut parts. One bag per two struts to the side of a vehicle.

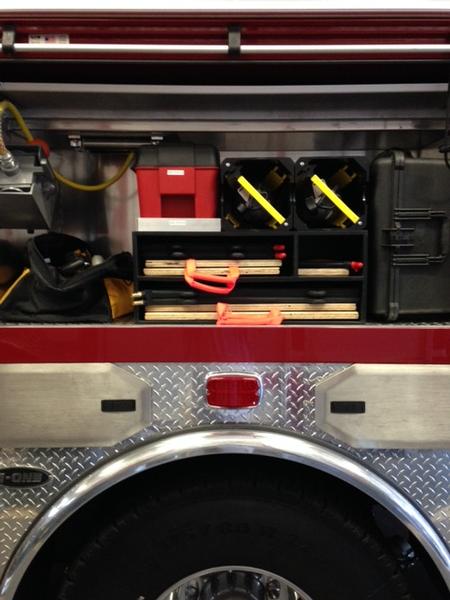

R3 compartment. This compartment contains all of our air operated equipment. The airbag control system, spare air cylinders, airbags, base pads, air tools and cordless tools are all packed into this compartment.

R4 compartment. This is our main rescue compartment on the truck. It contains all of our hydraulic Hurst tools.

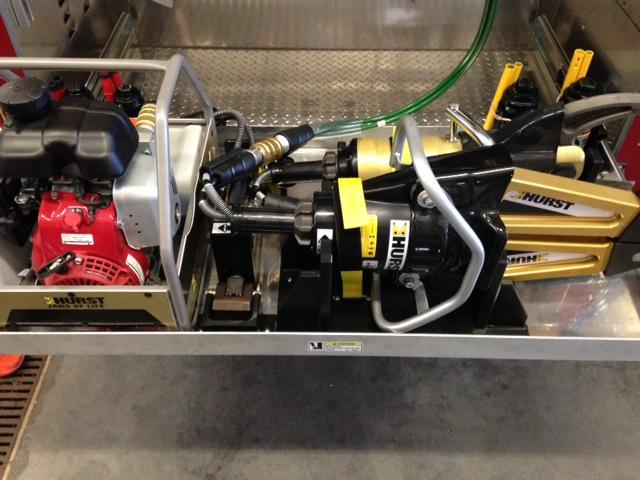

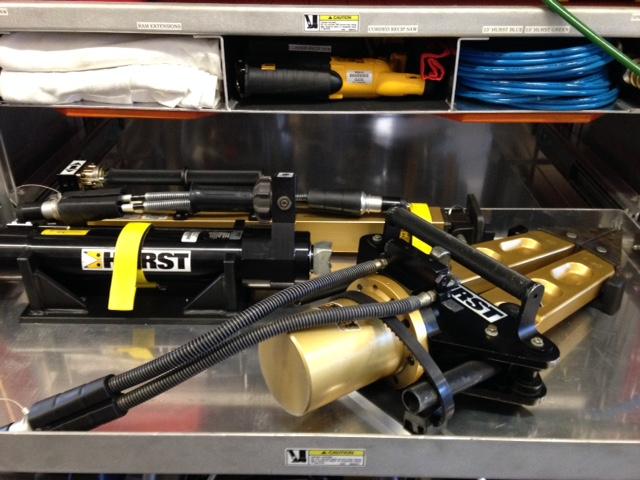

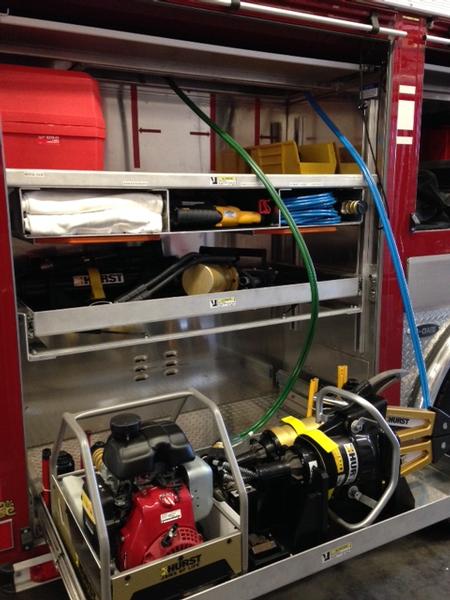

Bottom slide out tray contains a small Hurst ram, medium Hurst spreader, large Hurst cutter, portable gas Hurst pump and various sized bottle jacks.

Middle slide out tray contains the large Hurst spreaders, large Hurst ram and large Hurst telescoping ram.

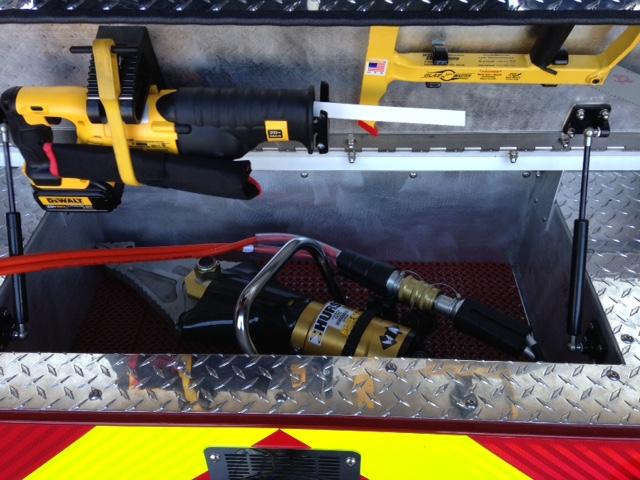

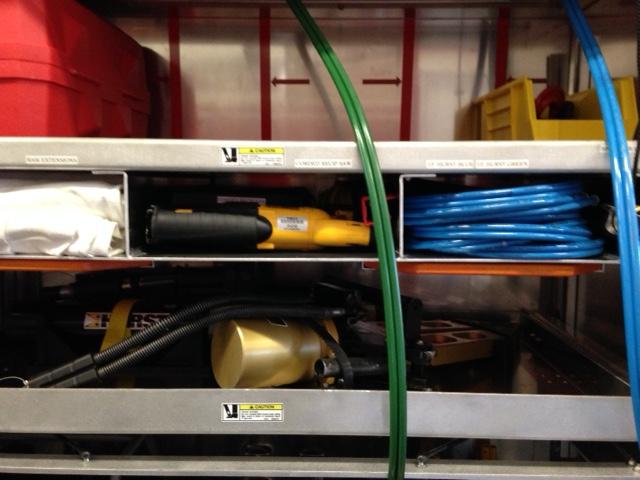

Top tray contains the Hurst ram attachments, two Hurst hoses, corded reciprocating saw, cordless reciprocating saw, corded metal circular saw and chain attachments for the Hurst spreaders.

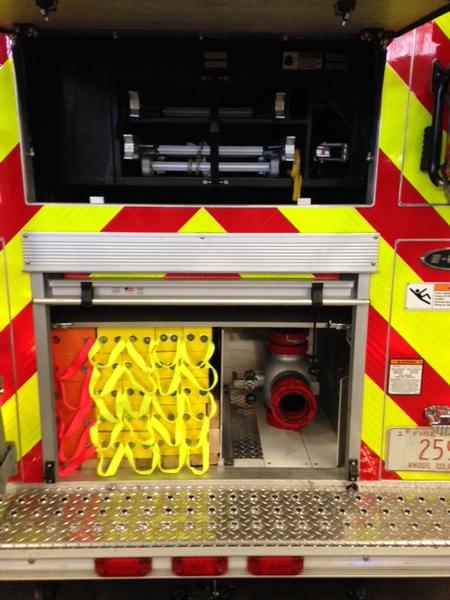

Rear compartment holds more cribbing compliment for the truck as well as the hydrant equipment. The ladder tunnel hold our ground ladders and pike poles of various types and sizes.

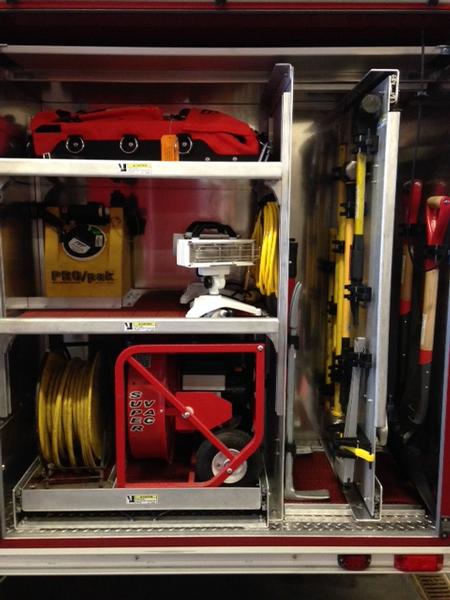

L4 Compartment contains all of our firefighting hand tools. Also contains our fan and lighting equipment. All RIT equipment will also be carried on the top shelf.

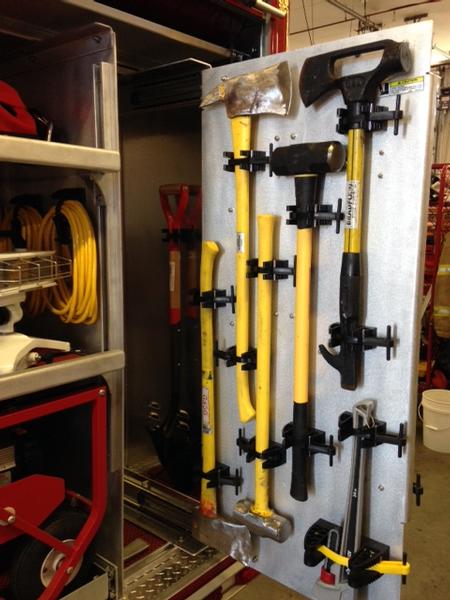

Slide out tool board with striking tools.

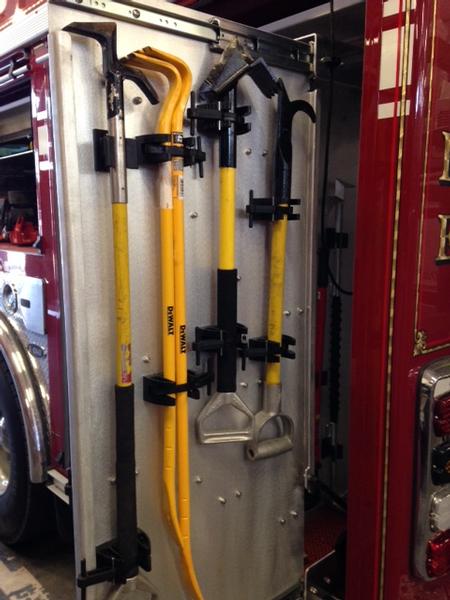

Slide out tool board with pike poles and prying tools.

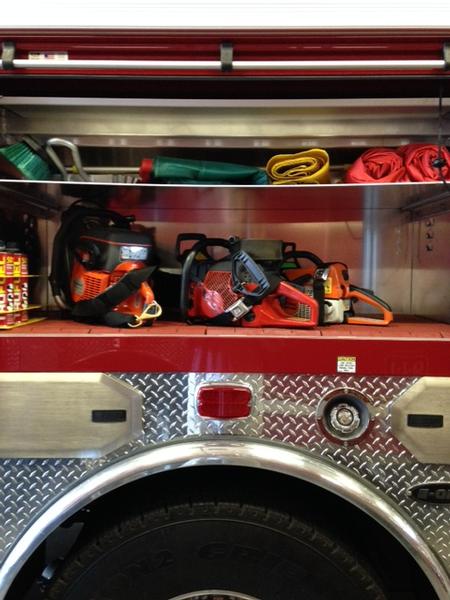

L3 compartment. This compartment contains all of our saws in one place. All of the fuel cans, tarps and brooms are carried here as well.

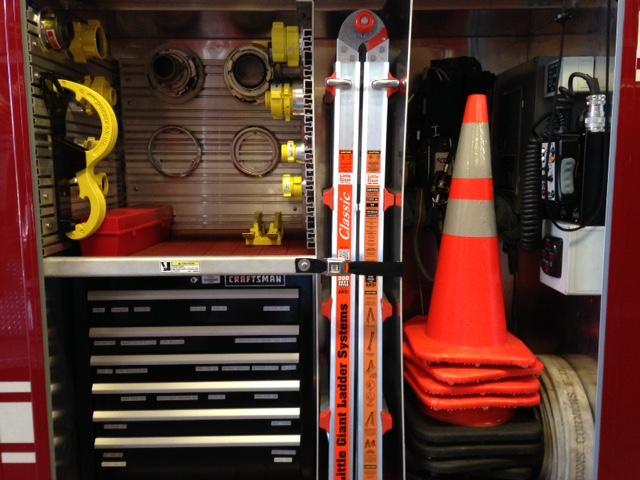

L2 compartment. This compartment is the engineers compartment on the truck. Located here are all of the pump fittings and smaller hoses needed for water movement. Also here are the main tool box for the truck, little giant ladder, cones and the engineer's SCBA.

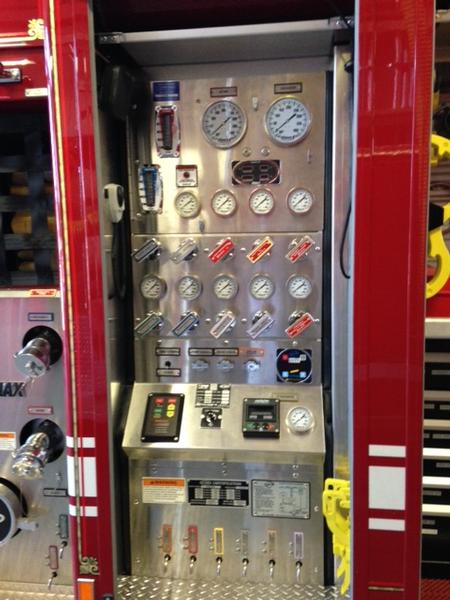

L1 compartment. This is the pump panel for the truck. Pretty straightforward with the addition of an external mic and speaker for the main radio.

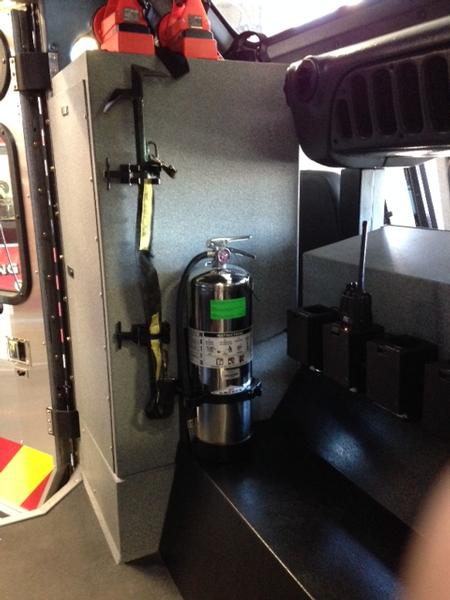

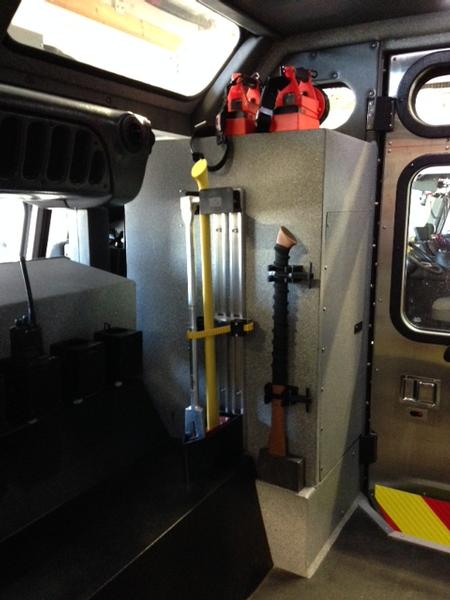

Rear of cab area with tool mounting.

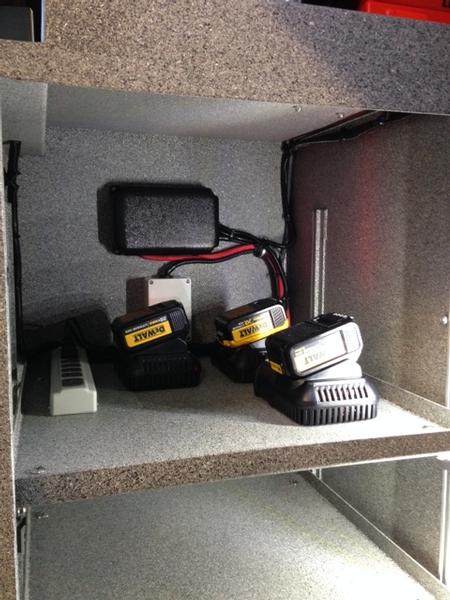

One medical compartment contains all charging items on the truck.

More rear cab equipment mounting.

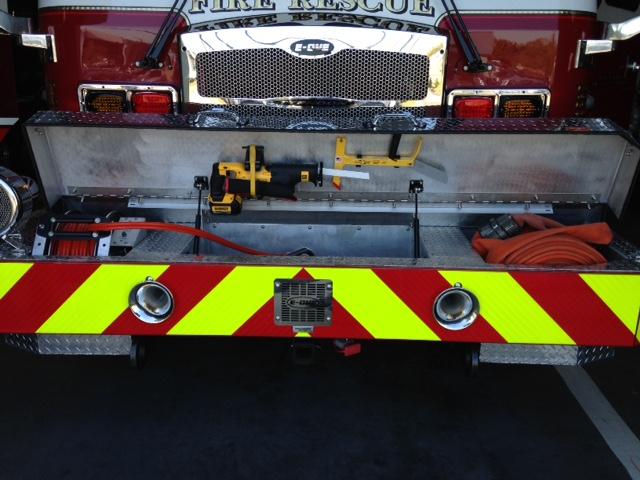

Front bumper of engine. Located here is our third Hurst hydraulic line connected to a Hurst multi-tool. Opposite that is our 150' 1 3/4" trash line.

All items needed to start job are contained within close proximity to tools.


By Firefighter Chris Wells
September 28, 2014

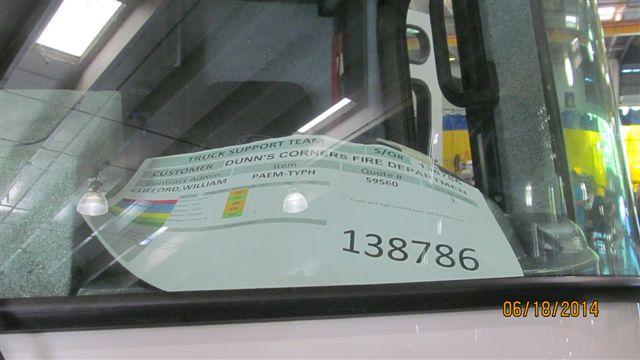

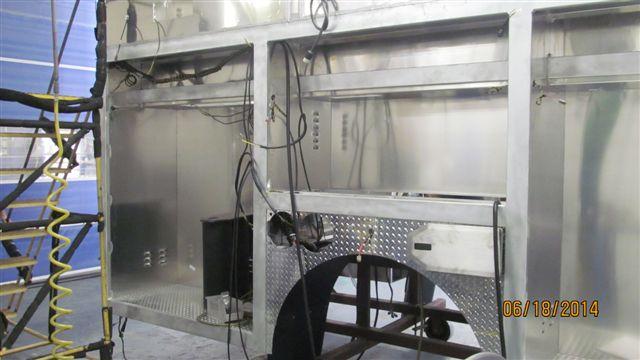

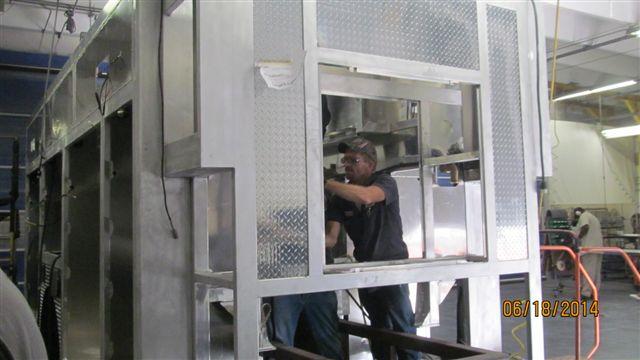

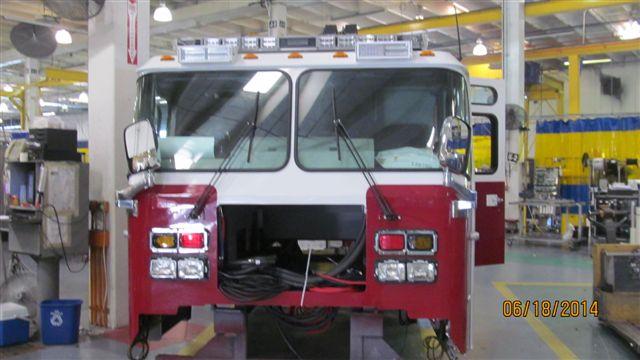

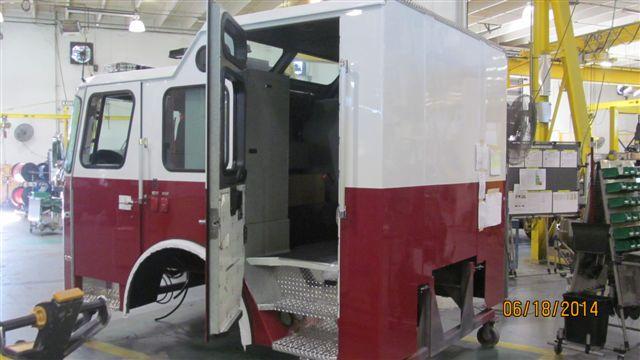

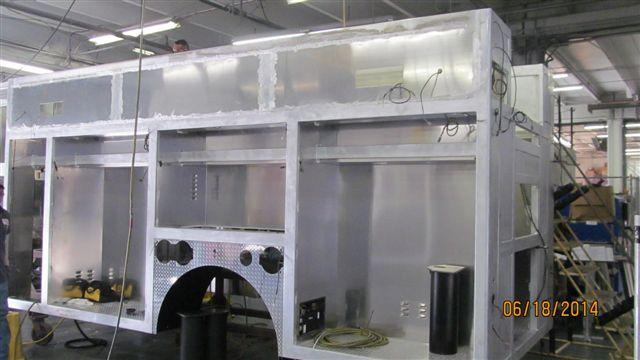

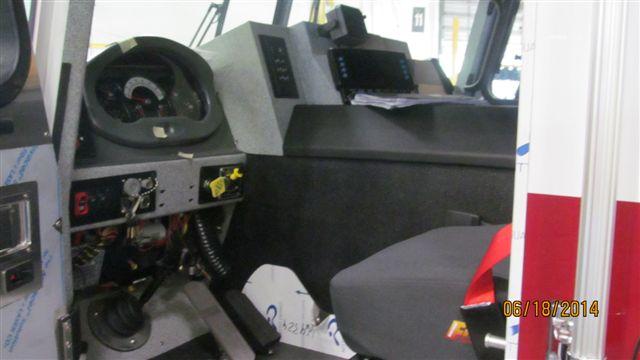

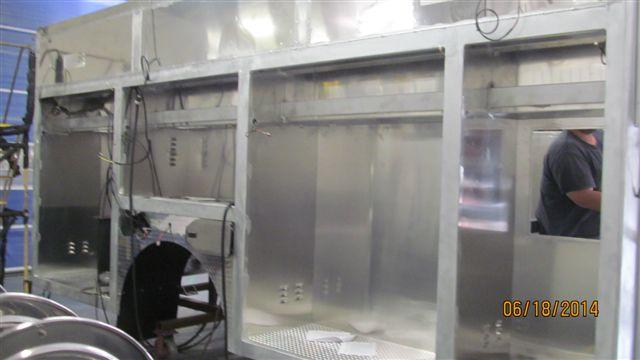

The production of DCFD's newest apparatus has started. DCFD has ordered an E-One custom Rescue-Engine on a custom Typhoon chassis. The Rescue-Engine will feature a 1,000 gallon tank, 30 gallon class A foam tank and a 1,500 GPM pump. The apparatus will also feature a full rescue compliment to run first due as our rescue truck. The apparatus committee has designed the truck as such to have a Rescue side to the truck as well as a Fire side to have a division of duties and equipment readily accessible. Stay tuned for updated photos as they become available through the build process. 6/5/2013 The cab has finished in the paint department and is now set to run through the cab assembly line to receive all of the interior and electrical components to later be dropped onto the chassis. The photos shown also feature the two medical compartments added to the cab over each wheel well. 6/18/2014 The cab is now making its way through the cab assembly. The emergency lighting, scene lighting, seats and rear compartments are installed. The body is now in the fabrication process. 7/1/2014 The Cab is now waiting on the finished chassis. The Chassis is being prepared to accept the engine and power options. Also the pump and tank will be fitted prior to the body being dropped onto the truck. The body is currently baking in the paint booth. The truck should be pieced together by the end of next week. 7/16/2014 All parts of the apparatus have been combined. The truck now looks close to the finished product. They have also added the front bumper extension which will house our preconnected Hurst Combi tool and a trash line. Delivery to Greenwood Fire Apparatus should take place the week of 7/20. From there all lettering and pre delivery finishes will be completed prior to final acceptance. 9/1/2014 DCFD has taken preliminary delivery of the new engine. Greenwood fire apparatus will be taking the truck back to further mount equipment once brackets come in, and then have the truck for their open house. 9/28/2014 The new engine is very close to being placed in service (hopefully within the week). Most to all equipment has been mounted in its own positions. Certain equipment will be moved off of other apparatus once the truck is placed in service. Mainly the medical equipment and certain water movement items will be required. Stay tuned for its first in service call!
